Single Swing Gates


SINGLE SWING GATE KITS

For residential gates to 4M width

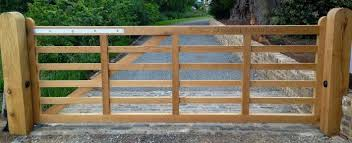

Farm single leaf gate application Farm single leaf gate application

RECOMMENDED MOTOR SETS

ATI-S             Economy set for lightweight gates up to 5m

ATS-S            Safety set for lightweight gates up to 5m

AXO-S          Safety sets for gates up to 4m per leaf

FERNIE-S    Safety sets for large piers, leaves up to 4m



RECOMMENDED PEDESTRIAN MOTOR SETS

STYLO or FTX          Pedestrian gate sets


               ATI  230V SINGLE SWING GATE SET

ATI single leaf gate set ATI single leaf gate set

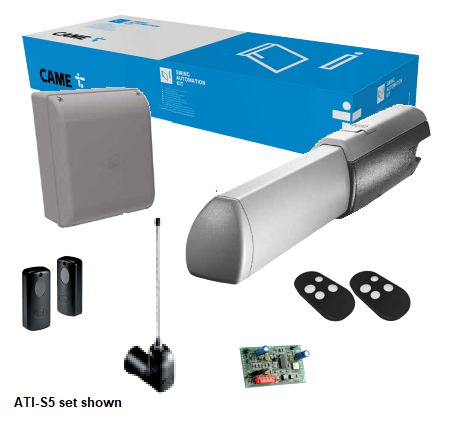

ATI-S5  kit Contents

Single leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.

A5000A Long stroke ATI motor with limit switches 1
ZA3P Control panel for basic 230V motors 1
AF43S Radio receiver, 433MHz 1
TOP-A433 Antenna, 433MHz 1
TOP-D2F Remotes, 433MHz 2
DIR10 Photobeam 1

ATI basic rams with 230V induction motors. Geometry is critical for all rams arms. This is a no frills set with slow down at end of travel.

               ATS  24V SINGLE SWING GATE SET

ATS single leaf gate set ATS single leaf gate set

ATS 24V motors have the encoder for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction.  Being low voltage, they are suitable for medium duty, and can take the battery backup option. Geometry is critical for all rams arms, but the ATS boasts a 200mm 'C' attibute.

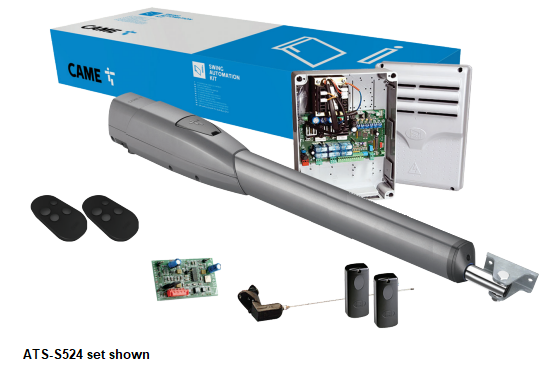

ATS-S5  kit Contents

Single leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.

ATS524 Long stroke ATS motor with encoder 24Vdc 1
ZL65 Control panel for 24V encoder motors 1
AF43S Radio receiver, 433MHz 1
TOP-A433 Antenna, 433MHz 1
TOP-D2F Remotes, 433MHz 2
DIR10 Photobeam 1

               AXO  SINGLE SWING GATE SET

AXO single leaf gate set AXO single leaf gate set

The AX40 and AX70 motors have the slower gearbox for better control of longer gates.  AXO motors have the encoder for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction.  The 'C' attribute is low on this motor, so geometry is critical.

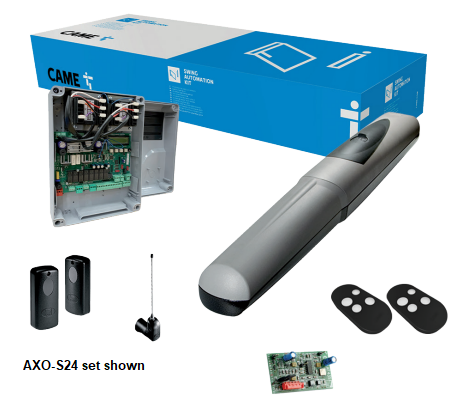

AXO-S5  kit Contents

Single leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.



AXO402306 Slow AXO motor with encoder 230Vac 1
ZM3E Control panel for 24V encoder motors 1
AF43S Radio receiver, 433MHz 1
TOP-A433 Antenna, 433MHz 1
TOP-D2F Remotes, 433MHz 2
DIR10 Photobeam 1

               FERNIE  ARM SINGLE LEAF GATE SET

FERNIE single leaf gate set FERNIE single leaf gate set

FERNIE articulated arm sets for gates up to 4M are ideal for fitting to large brick piers. The 'C' attribute is 380mm. All single leaf gates should have an electric lock for security, and physical protection.

FERNIE's have encoders for safety reversal, and also limit switches for end of travel.  The ZM3E control panel allows detailed setting. It takes the CAME connect device for smartphone control.

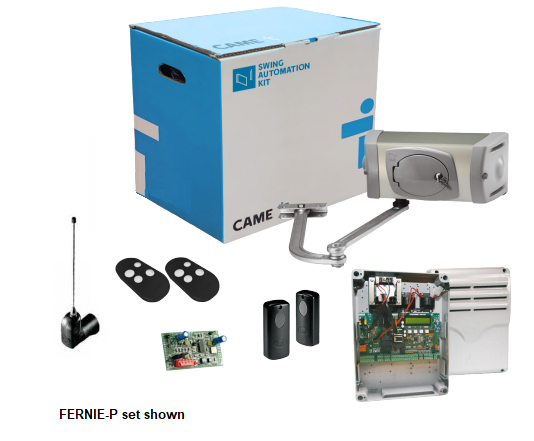

FERNIE set contents

Single leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.



FERNIE Articulated arm motor for large piers with encoder 24Vdc 1
ZM3E Control panel for 230V encoder motors 1
AF43S Radio receiver, 433MHz 1
TOP-A433 Antenna, 433MHz 1
TOP-D2F Remotes, 433MHz 2
DIR10 Photobeam 1
FERNIE single leaf gate applicationFERNIE single leaf gate application

  • The invisible solution to power your gate
  • Protection rating against weathering agents IP67.
  • Foundation box in steel with anticorrosive treatment, or in AISI 304 stainless steel.
  • Automatic re-hooking of the release system after the gate manual maneuver.
  • Integrated, adjustable mechanical limit switches.
  • Opening up to 180° (with FL-180 accessory).
  • Set up for operation in case of power outage in the 24 V DC versions.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

Concealed solution for applying in private homes or apartment buildings

Max. length of leaf (m)         Max. weight of leaf (kg)

3.5                                 400

2.5                                 600

2                                    800

MODELS FROG-AE FROG-A FROG-AV FROG-A24E
Protection rating (IP) 67 67 67 67
Power supply (V - 50/60 Hz) 230 AC 230 AC 230 AC -
Power supply to motor (V) 230 AC 230 AC 230 AC 24 DC
Absorption (A) 1,9 1,9 2,5 15 Max.
Power (W) 460 460 300 180
Maneuvering time at 90° (s) 18 18 9 ADJUSTABLE
Duty/cycle (%) 30 30 30 HEAVY-DUTY SERVICE
Cycles/Hour 11 MAX 11 MAX - -
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Motor’s heat protection (°C) 150 150 150 -
