Smart Gate Access


Bluetooth access

Came Bluetooth selector SELB Came Bluetooth selector SELB
  • Entry from the car
  • Proximity entry

Smartphone access

Came Smartphone access Came Smartphone access
  • Entry via 'Connect' app
  • Dial to open

Cloud monitoring


SMART  ACCESS

Smart access revolves around homeowners use of smartphones for entry and control of their environment.



BLUETOOTH     SELB bluetooth access control readers respone to smartphone bluetooth signal



DIAL to OPEN     Either part of a GSM intercom, or a standalone device to operate a gate when a SIM card number is called. Gives access to any phone, mobile or landline.



CONNECT       app on the users smartphone operates the gate. Advance functions like hold open or timed opening can be programmed.



CAME key  is an installer tool for editing controller settings. It can be left in place for users.



XIP      are IP intercoms that use the cloud app for access

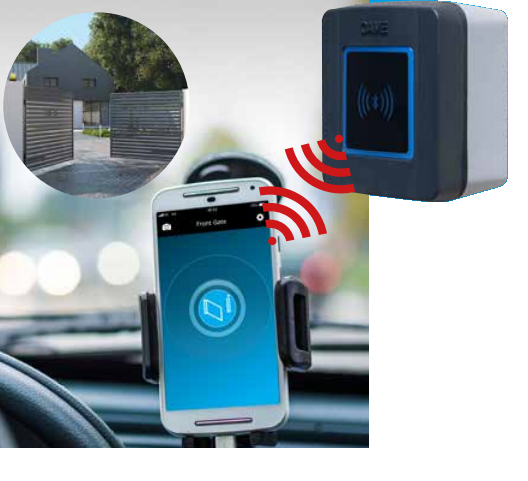

SEL-B   Bluetooth selector

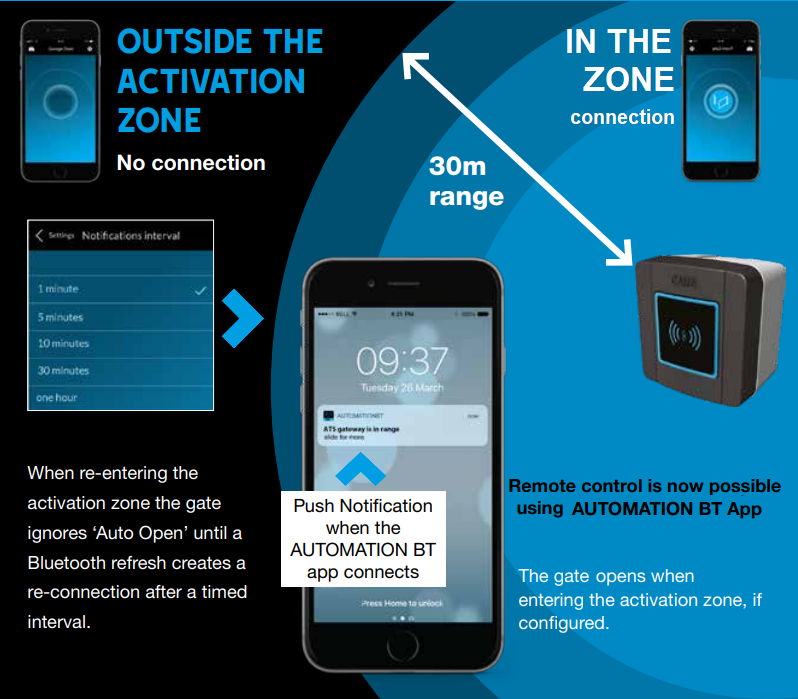

The SEL-B communicates with your phone using Wifi. Download the AUTOMATION BT app and operate the gate from your phone. If enabled, your phone can open the gate automaically when it is in range.

The SEL-B takes a multicore cable. Power is 12 or 24V ac/dc. The package is IP54 .

Open a gate with smartphone Bluetooth Open a gate with smartphone Bluetooth
Came app for gate control Came app for gate control

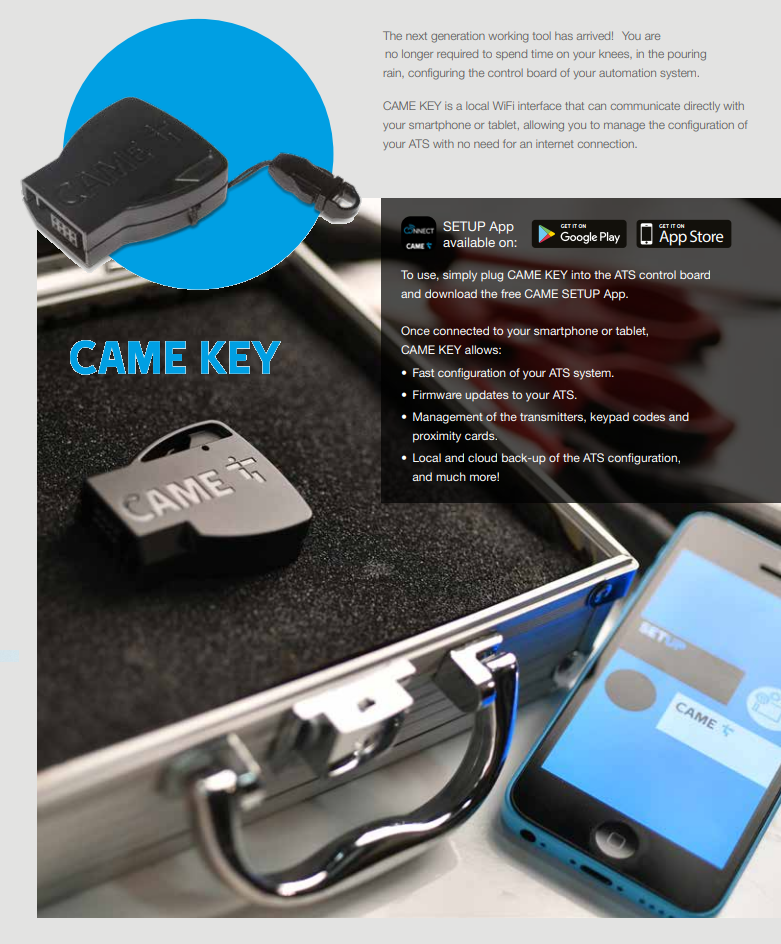

CAME key

 The CAME key is a gateway to connect the operator to the cloud via WiFi, or locally via Bluetooth mode. Five users can be connected by Bluetooth.

The key plugs onto more recent control panels for direct access to the control panel.  There are two versions. The dark grey primary key gives direct access. The light grey secondary key gives access to the CAME connect gateway.

To use, simply plug the key onto the control panel and downloadthe free CAME SETUP App. Once connected to a smartphone or tablet the CAME key allows ..

  • Fast configuration of the device
  • Firmware updates to the device
  • Management of remotes, keypad codes, and access cards
  • Local and cloud back-up of control panel configuration





Check out the video below

Came key for control panel setting Came key for control panel setting

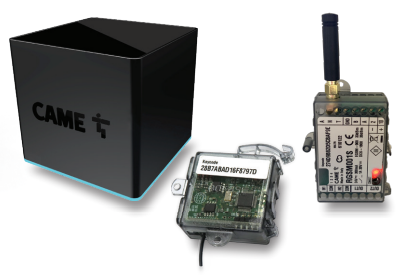

CAME connect gateways

Came gateway monitors the control panel Came gateway monitors the control panel



Gateways can connect the user to their control panels for monitoring, activation, or changing functions.

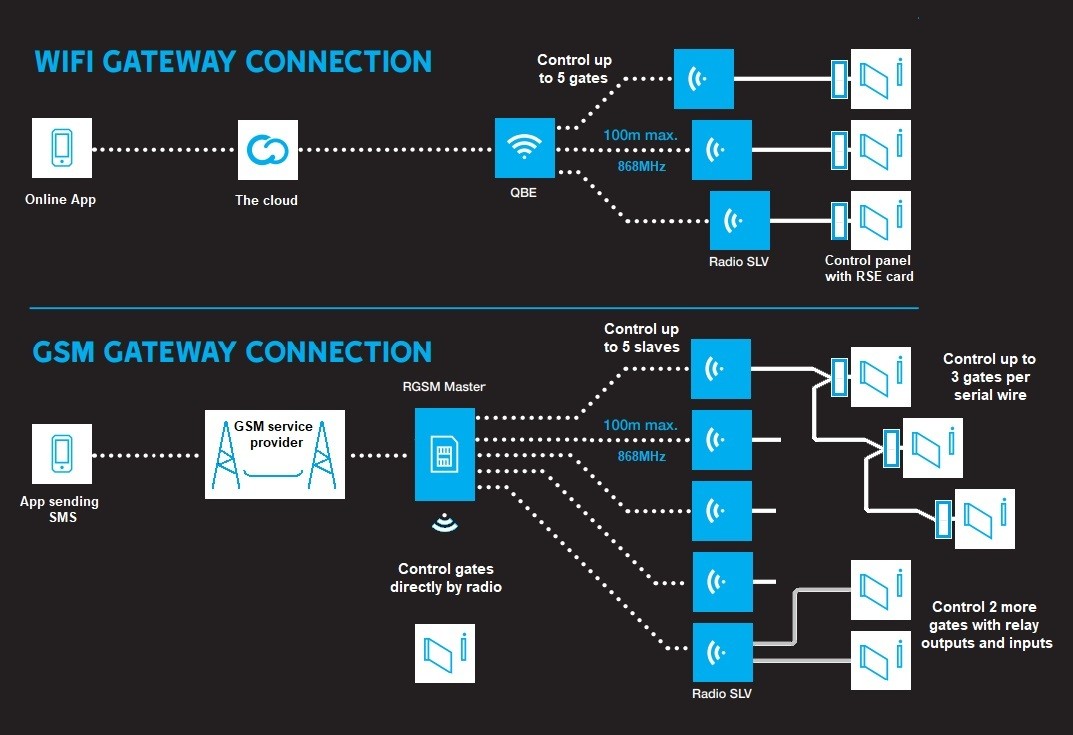

There is a GSM App that connects directly to a GSM receiver, which then activates a control panel by serial link or an existing remotes receiver.

The alternative smart App connects via Wifi to your home router, which then relays via LAN cable or a WiFi receiver to up to 3 control panels.



Came gateway connection options Came gateway connection options
Came gateways give cloud access Came gateways give cloud access

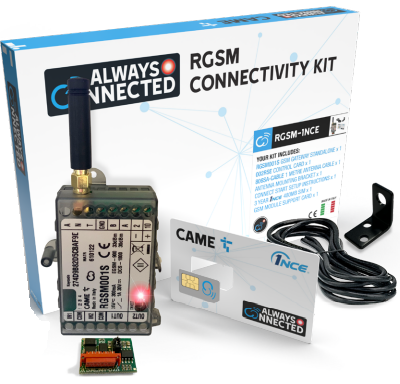

Dial to open

Open a gate with GSM relay Open a gate with GSM relay



Dial to open is function of GSM intercoms or a standalone GSM relay. In both cases, the device has a SIM card with its own mobile phone number.

When that number is dialed, the device opens the gate, then drops the line immediately, so there is no charge to the SIM card account.

Devices often give the option for secure dial to open, where a list of authorised numbers is kept. In this case, the "whitelist" needs to be managed. Authorised callers can be added or deleted.

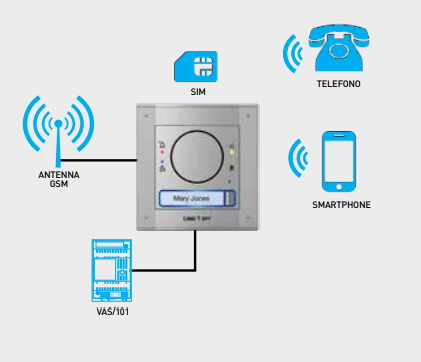

GSM intercom gives dail2open access GSM intercom gives dail2open access

Came smartphone app answers the intercom Came smartphone app answers the intercom
Came video monitor answers gate intercom Came video monitor answers gate intercom
