UNDERGROUND GATE AUTOMATION
UNDERGROUND GATE AUTOMATION
GATE LEAVES UP 3.5M
FROG kit options
- Choice of steel or stainless steel boxes
- Choice of 3 manual release mechanisms
- Choice of 3 opening angles
- Optional battery backup for 24V sets
- Optional 'CAME Connect' on safety sets
Concealed solution for private homes or apartment builldings
Double leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.
- Two ground casements
- Two motor gearboxes
- Two manual release mechanisms
- Control panel to suit motor type
- Receiver card for remotes
- Antenna for remotes
- Two remotes
- A set of photobeams

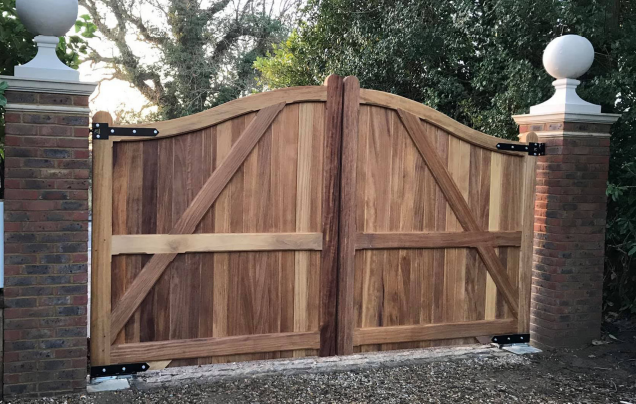

FROG double leaf underground automation kits are the premium solution for residential entrance gates.
Hi duty sets are necessary for apartment blocks, car parks, or gated comunities enclosing more than a dozen parking spaces. Hi duty sets use 24V motors which have the additional advantage of carrying the battery backup option.
Safety sets have motors fitted with encoders for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction. The controllers also have an LCD display for digitally setting every parameter.
CAME are constantly developing consumer options such as operation and monitoring via smartphone. These hi tech options are available through the safety
A presitge set of entrance gates deserves the best. Fit a CAME Frog.
- The invisible solution to power your gate
- Protection rating against weathering agents IP67.

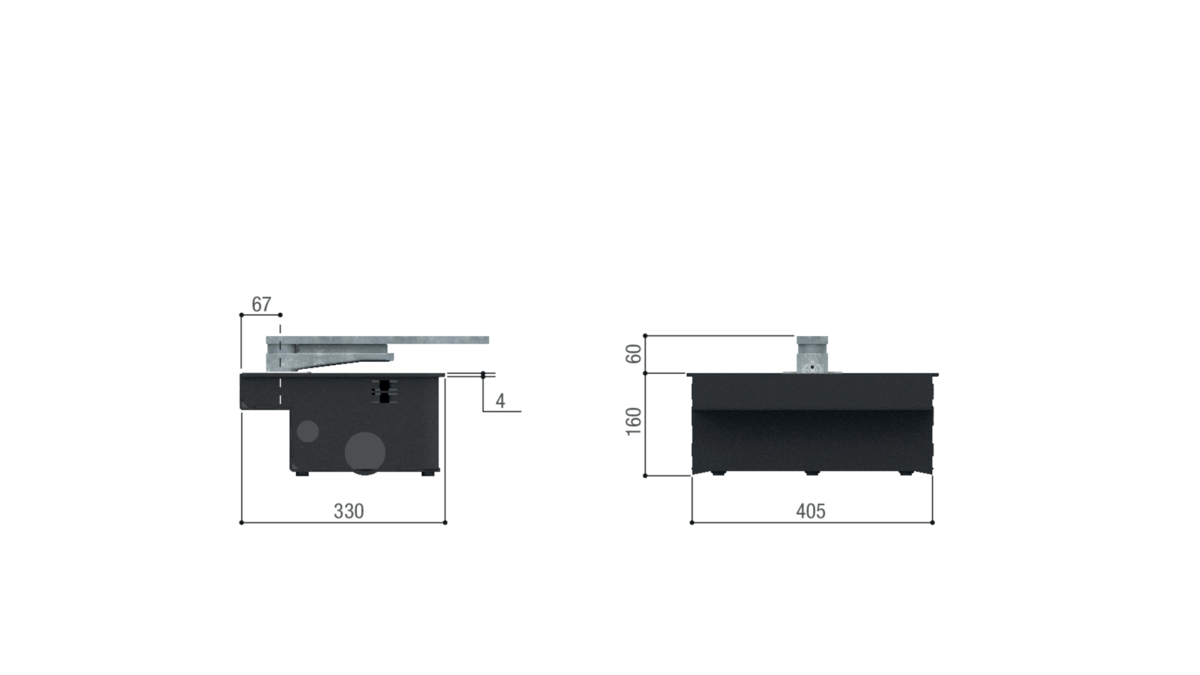

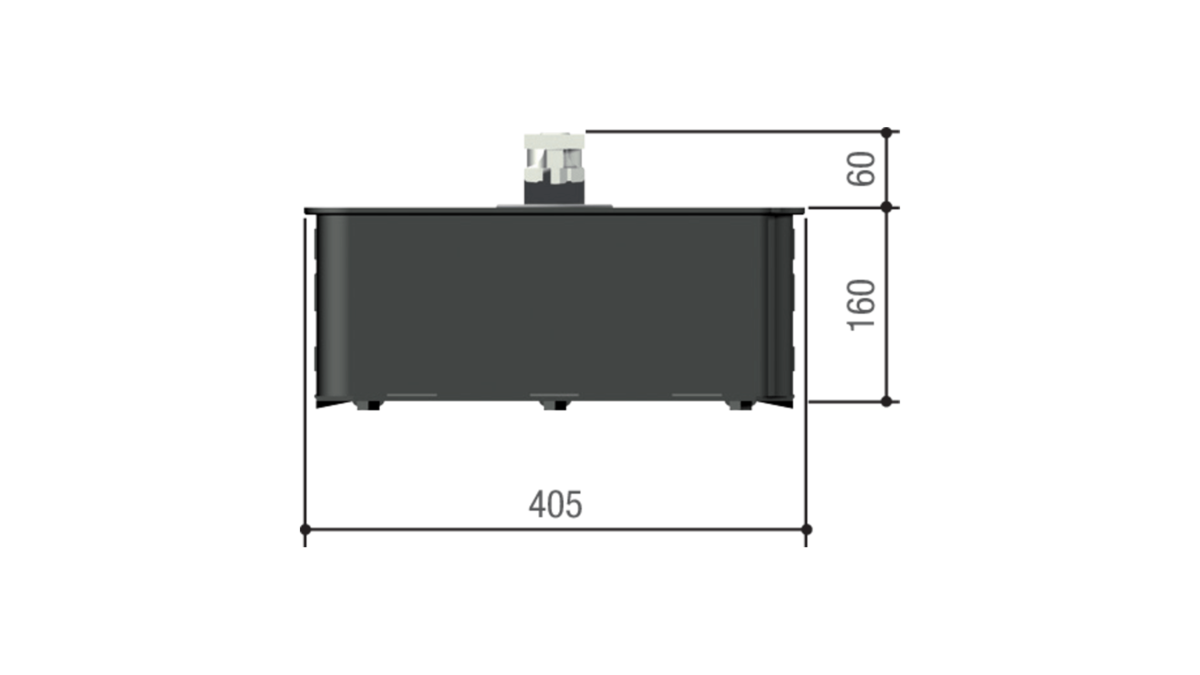

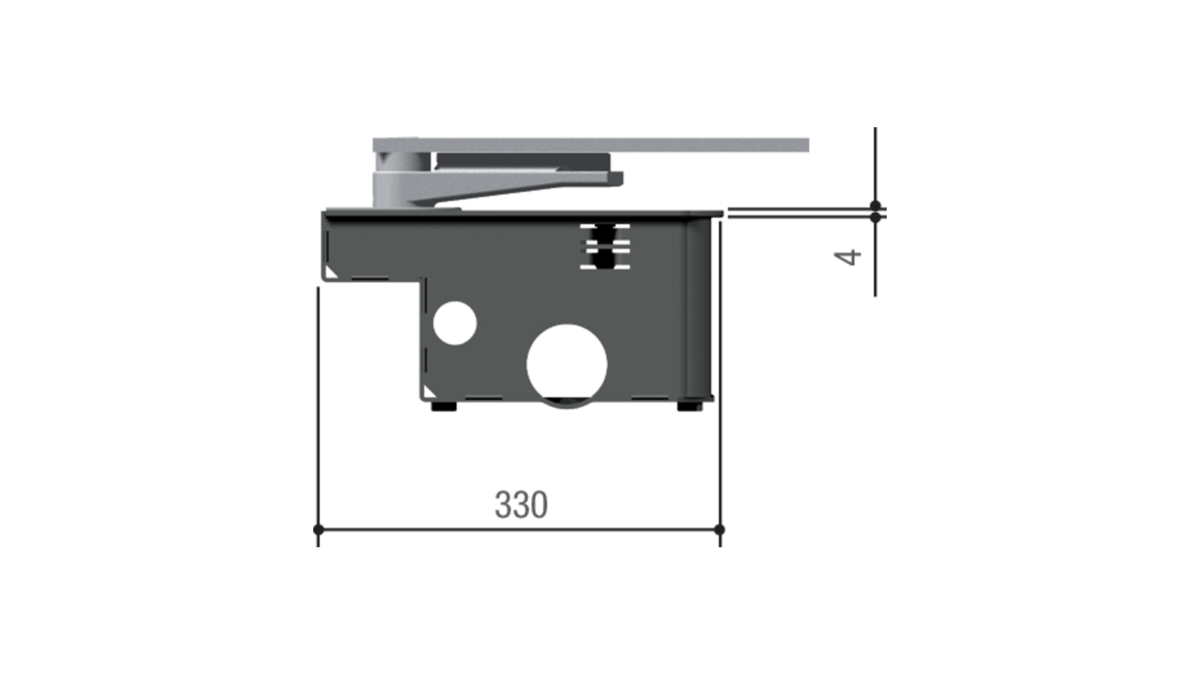

- Foundation box in steel with anticorrosive treatment, or in AISI 304 stainless steel.
- Automatic re-hooking of the release system after the gate manual maneuver.
- Integrated, adjustable mechanical limit switches.
- Opening up to 180° (with FL-180 accessory).
- Set up for operation in case of power outage in the 24 V DC versions.
- Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
Concealed solution for applying in private homes or apartment buildings
Max. length of leaf (m) Max. weight of leaf (kg)
|Protection rating (IP)||67||67||67||67|
|Power supply (V - 50/60 Hz)||230 AC||230 AC||230 AC||-|
|Power supply to motor (V)||230 AC||230 AC||230 AC||24 DC|
|Absorption (A)||1,9||1,9||2,5||15 Max.|
|Maneuvering time at 90° (s)||18||18||9||ADJUSTABLE|
|Duty/cycle (%)||30||30||30||HEAVY-DUTY SERVICE|
|Cycles/Hour||11 MAX||11 MAX||-||-|
|Operating temperature (°C)||-20 ÷ +55||-20 ÷ +55||-20 ÷ +55||-20 ÷ +55|
|Motor’s heat protection (°C)||150||150||150||-|
- FL180 - Chain driven transmission lever for openings of up to 180°Our Price £112.98 £94.15 Regular Price £161.40
FL180 Chain driven transmission lever for openings of up to 180° and gate leaves of max. 2 m in length.
- FROG-P - Double Leaf 230v Gate KitOur Price £1,252.10 £1,043.42 Regular Price £1,788.72
FROG-P Complete kit for a pair of swing gates weighing up to 400 kg / max width 3.5m
Time of Run
CAME Connect European Standards
- Frog Kit Configurator
From £18.35 £15.29 Regular Price £26.21
To £1,310.52 £1,092.10 Regular Price £1,872.17
Make sure you choose the correct number of casements and manual releases so it matches the number of motors that you need.
Use this tool to build a FROG kit of your choice:
-Motor and Control Panel. The panels match the chosen motor.
-Manual release type. Choose from lever, trilobe or custom key.
-Remotes. Choose between 2 button and 4 button, fixed or rolling code.
-Choose whether you need a radio card and/or antenna.
- FROGAE-P - Double Leaf 230v Encoder Gate KitOur Price £1,181.71 £984.76 Regular Price £1,688.16
FROGAE-P Complete kit for a pair of swing gates weighing up to 400 kg / max width 3.5m
CAME Connect European Standards Encoder Motor
- FROGAE-P24 - Double Leaf 24v Encoder Gate KitOur Price £1,421.53 £1,184.61 Regular Price £2,030.76
Complete kit for a pair of swing gates weighing up to 400 kg / max width 3.5m
Encoder / Low Voltage
Intensive Duty CAME Connect European Standards Encoder Motor
