Arm barriers


GARD4 & GARD6 arm barriers

passages up to 6.4m



For years the workhorse of the range, GARD6  is a tough resilient barrier for roadwidths up to 6.4m.  The GARD4 motor is mounted to drive 4m arms directly. The GARD6 motors are mounted in the middle with a connecting rod.



  • Heavy 100mm diameter arm with grove for light strip
  • Steel cabinet with optional motion warning light on top
  • 24Vdc motor with irreversible gearbox
  • Motor encoder option version for safety and control
  • Optional skirts, battery backup, arm strip lights

GT4 & GT8 arm barriers

passages up to 4m



CAME's new parking barrier range uses trusted gearbox and control panel technology. Parking barriers are updated with access lights.



  • Rectangular arm with soft rubber bottom edge
  • Steel cabinet with dual colour 'traffic light' top
  • 24Vdc motor with encoder gearbox
  • Optional battery backup, arm strip lights

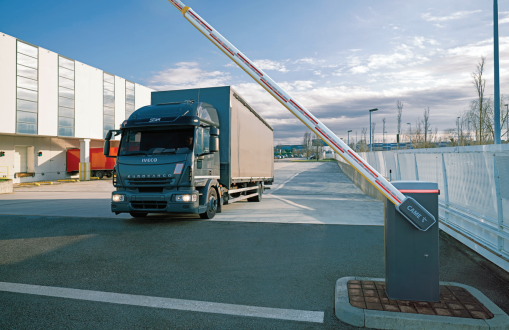

Gard GT8 barrier industrial application Gard GT8 barrier industrial application

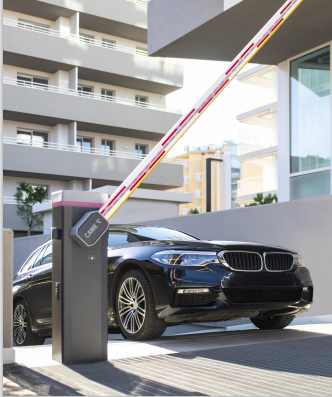

Gard GT4 barrier car park application Gard GT4 barrier car park application

Gard PT arm barriers Gard PT arm barriers

GARD PT arm barriers

passages up to 3.8m



The GARD PT is designed for very high duty and 2 million operations, such as tool roads. Brushless motors are the state of the art for control and longevity. The gearbox is reversible (non locking) which allows it to be lifted in emergencies.



  • Lightweight 90mm arm with grove for light strip
  • Steel cabinet with dual colour 'traffic light' top
  • 36Vdc brushless motor with reversible gearbox
  • Optional arm locks, lighting, and breakaway ar attachments

G5000 arm barriers

passages up to 5m



This is the old barrier design updated with encoder technology and the 100mm diameter round arm.



G4000 & G6000 arm barriers

passages up to 6.5m



The old CAME barriers were in distinctive orange. Still available as replacements, these barriers are not recommended for new instals. The GARD5000 is the same casing with encoder technology. The G4000 motor is mounted to drive 4m arms directly. The G6000 motors are mounted in the middle with a connecting rod.



  • White rectangular arms with optional rubber lighting edges, or circular arms.
  • Steel cabinet with 6 knockouts for photobeams or controls
  • 24Vdc motor, irreversible gearbox, spring counter balance.
  • Optional battery backup, arm strip lights etc
