Bollard Systems


FOREMATIC  Bollards

  •      SILO-E         Domestic security bollard, 220mm diameter, 600mm high    ts as pedestrian area markers
  •      SILO-F         Folding bollard for pedestrian area demarcation, 220mm diameter, 600mm high, 300mm casing depth
  •      SILO-G         Galvanised steel bollards painted to any RAL colour
  •      SILO-S         Commercial bollard with split hydraulics, 304 grade stainless steel posts 600mm high, 220mm diameter
  •        SILO-C         Crash rated bollards are available with a 15mm wall thickness.


Silo-F -  Fold down bollard for shallow installation

Silo-F   Features

  •   304 grade stainless steel
  •   220 dia, 600mm high, 6mm wall
  •   Shallow installation depth
  •   LED crown strip & reflective band

SILO-F is the only solution for sites with vital services close to the surface. There is a motor or the cover and one to lift the post. The penalty is rise and fall times.

SILO-F is used on pedestrian de-marcation applications. The bollard is not suitable for hi impact by vehicles. In the case off power failure, the bollard remains in the same position.


Silo-E -  Domestic security bollard

Silo-E   Features

  •   304 grade stainless steel
  •   220 dia, 600mm high, 6mm wall thickness
  •   Easy installation & maintenance
  •   LED crown strip & reflective band
  •   Fail secure locking solenoid
  •   Optional limit switches



SILO-E has a double acting hydraulic ram with integral 230V induction motor drive. The IP68 sealed unit is immersion tested before assembly. In the case off power failure, the bollard remains in the same position. A low voltage solenoid bypass valve can be activated that allows the bollard to descend under it’s own weight.

 A crown of LEDs around the top of the tube can be set within a control panel to flash or remain ON. Standard colours are red white or blue. Base model-E does not include limit switches, but they can be fitted.

 Domestic driveway security is growing market. Manual or automatic bollards are a convenient and inexpensive alternative to automated gates, with less driveway lost under the swing of a gate. Bollards can be used with an electric gate and integrated into the gate control system.


Silo-S -  Commercial split hydraulics bollard





Model S is a commercial bollard with split hydraulics. It has a double acting hydraulic ram with a separate 230V induction motor drive. The IP68 sealed unit is immersion tested before assembly. In the case off power failure, the bollard remains in the same position.

A crown of LEDs around the top of the tube can be set within a control panel to flash or remain ON. Standard colours are red white or blue.

Silo-S are favoured by installers who like the extra space below ground for connection and a drainage pump.

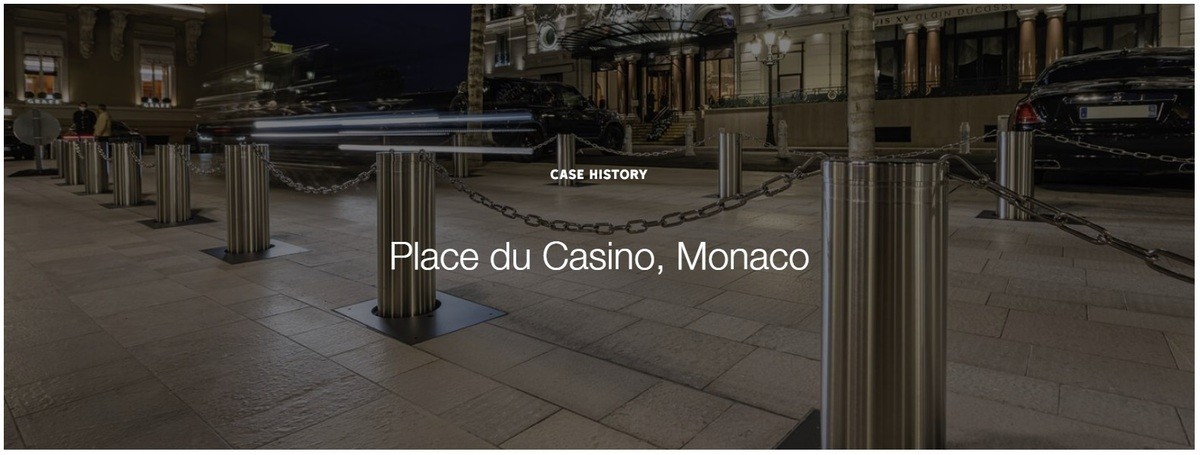

Bollards in a Monaco street Bollards in a Monaco street

FADINI bollards

  •      CORAL are 100mm diameter automatic posts as pedestrian area markers
  •      VIGILO are 200mm diameter automatic posts for vehicle exclusion and private drives
  •      TALOS are 275mm diameter automatic posts street use
  •      TALOS M30 and M50 are crash rated atomatic bollards for high security applications

TALOS bollards

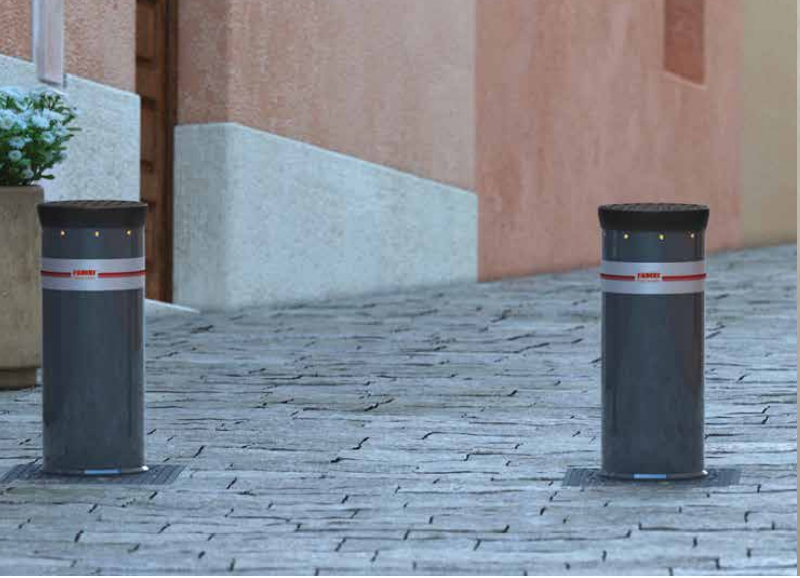

Talos bollards in a cobbled street Talos bollards in a cobbled street

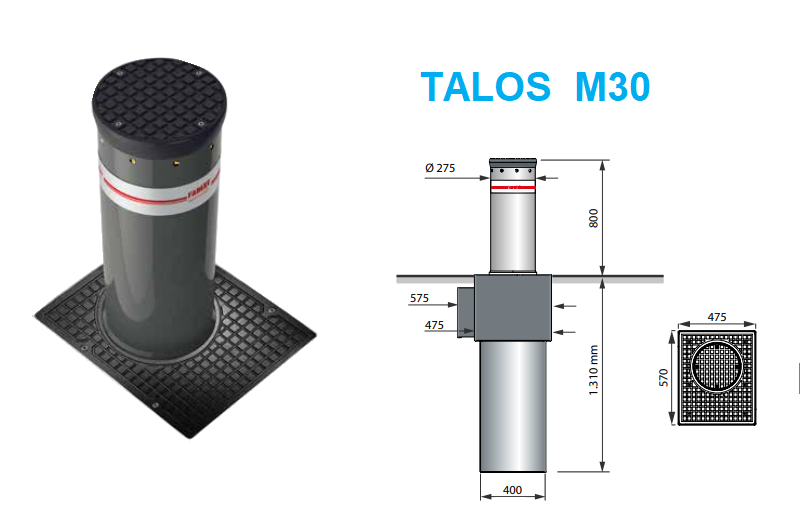

Talos M30 bollard dimensions Talos M30 bollard dimensions

The Fadini TALOS M30 is a heavy-duty, retractable oil-hydraulic anti-ram bollard designed for high-security perimeter protection and traffic control. Engineered to standards including ASTM F2656-07, PAS 68:2013, and IWA 14-1, it is rated to stop a 6.8-tonne vehicle traveling at 50 km/h

  • Cylinder: 800mm high, 275 mm diameter × 12 mm thick S355J2H steel with cataphoresis and RAL 7016 coating (optional AISI 304 stainless steel sleeve)
  • Impact & breakout resistance: 150,000 J impact resistance; 700,000 J breakout resistance [1]
  • Max static load: 20,000 kg
  • Operating speeds: ~4.5 s rising time; ~3.42 s lowering time (at 230 Vac, 50 Hz; 1,100 W absorbed power)
  • Duty rating: Up to 2,000 cycles/day
  • Temperature range: -20°C to +80°C (-40°C with optional heater)
  • Security & safety features:  Hydraulic locking when raised, emergency manual lowering via release spanner under a burglar-proof cover plate, integrated amber LEDs, Hall-effect limit switches, and IP67 hydraulic motor-pump unit

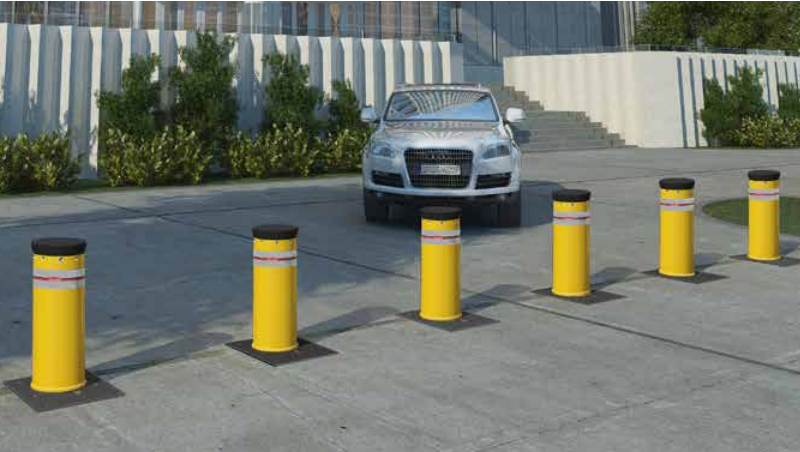

Talos bollards installed on a forecourt Talos bollards installed on a forecourt

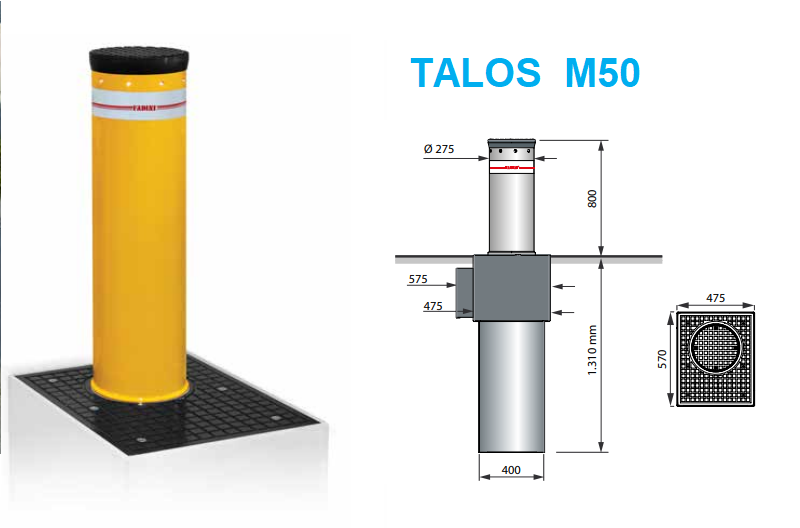

Talos M50 bollard dimensions Talos M50 bollard dimensions

The Fadini Talos M50 is a high-security, anti-terrorism perimeter bollard designed to stop a 7.5-tonne vehicle travelling at 80 km/h in a single-bollard configuration while remaining operational. According to Fadini UK, it is built for high-risk sites such as embassies, military bases, government buildings, and banks

  • Crash & Impact Ratings: Certified to ASTM F2656-15 C750, PAS 68:2013 V/7500(N3)/80, and IWA 14-1:2013 V/7200[N3C]/80 (700,000 J impact resistance; 2,000,000 J breakout resistance)
  • Dimensions & Build: 1,000 mm height above ground, 275 mm diameter, and 20 mm wall thickness using S355K2H steel (cataphoresis + RAL 7016 finish, with optional AISI 304 stainless steel sleeve) and a hot-dip galvanized pit
  • Operation & Speed: Oil-hydraulic drive (230 Vac, 50 Hz; 3,100 W absorbed power; IP67) rated for heavy-duty use up to 2,000 cycles/day. Standard rising time is about 5.0 s (~1.5 s with optional EFO / Emergency Fast Operation) and lowering time is about 3.2 s
  • Temperature & Load: Operates from -20 °C to +80 °C (-40 °C with optional heater), with a maximum static load of 20,000 kg lowered (2,800 kg raised)

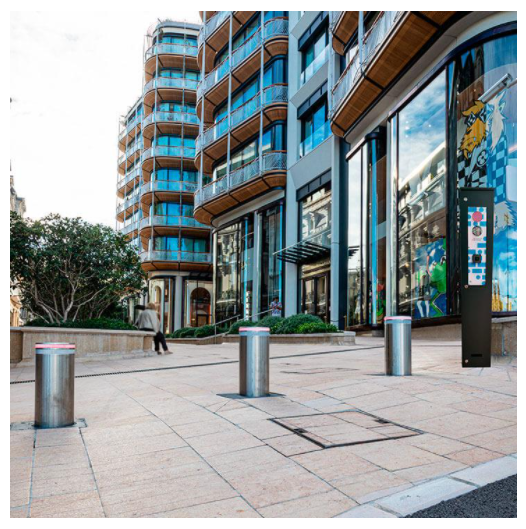

Bollards installed on a pedestrian area Bollards installed on a pedestrian area

Came chain barrier

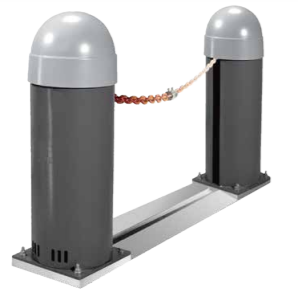

Chain barrier for parking Chain barrier for parking

While not a bollard, the enduring CAME chain barrier serves the same requirements. Occasional access in town centres. Arm barriers can be a liability where the public may be around a decending arm.

CAT has two chain guages with openings up to 15m. Like bollards, they are set in urban areas where public safety and vandal resistance are priorities.



Manual downloads:

Chain barrier installed on a pedestrian area Chain barrier installed on a pedestrian area

URBACO & OZAK bollards

                    URBACO bollards are a brand within the CAME group.

                    OZAK manufacture bollards, road blockers, and turnstiles and a brand within the CAME group.
