Double Articulated Arm Kits

               ARTICULATED ARM KITS

ARTICULATED ARM KITS

3 MOTOR SIZES, 1.8M, 2M, 4M width



ARTICULATED ARM options

STYLO-P    for lightweight gates up to 1.8m, 24Vdc motors

                          with articulated or telescopic arms.

FTX-P         for gates up to 2m per leaf, 24Vdc motors

                          with physical limits and encoder slow PSR.

FERNIE-P   for heavy gate leaves, or leaves up to 4m,

                           with 230Vac motors, or high duty 24Vdc motors,

                           Control panels include pressure sensitive reversal,

                           and may have the optional 'CAME Connect'

Retro fit solution for private homes or apartment builldings

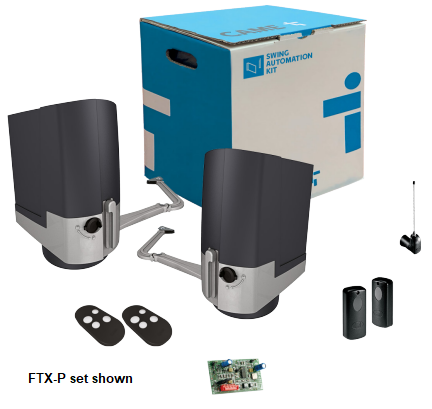

             FTX ARM KITS

FTX sets are simple to fit because one motor includes the control panel and radio reciever. Articulated arm motors are a good retro-fit solution. Because the geometry is not critical, motors will fit almost any small piers. A physical stop plate is included under each motor, so a gate centre stop isn't needed.

FTX is only available in 24Vdc, so is suitable for medium duty cycle applications, with the additional advantage of carrying the battery backup option.

The motors are fitted with encoders for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction.

Kit Contents

Double leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.



  • Master FTX motor with control panel inside
  • Slave FTX motor without
  • Two arms, either articulated, or telescopic
  • Receiver card for remotes
  • Antenna for remotes
  • Two remotes
  • A set of photobeams

             FERNI ARM KITS

Articulated arm motors are a good retro-fit solution. Because the geometry is not critical, motors will fit almost any medium sized piers. There is no  physical stop plates, but there are electrical limit switches for open and closed. A gate centre stop is recommended.

There is a 2nd 'telescopic' arm option used for applications where the gate hinge is near the back of the pier. This option is better for some applications.

FTX is only available in 24Vdc, so is suitable for medium duty cycle applications, with the additional advantage of carrying the battery backup option.

The motors are fitted with encoders for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction. There are 230Vac and 24Vdc versions that use the ZM3E and ZLJ24 panel respectively. The controllers also have an LCD display for digitally setting every parameter. Both panels will take the 'CAME connect' option  for operation and monitoring via smartphone. The 24V kits also take a battery backup option.

Kit Contents

Double leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.



  • Two FERNIE motors with encoder
  • Two articulated arms
  • Control panel to suit AC or DC motor type
  • Receiver card for remotes
  • Antenna for remotes
  • Two remotes
  • A set of photobeams

             STYLO ARM KITS

Articulated arm motors are a good retro-fit solution. Because the geometry is not critical, motors will fit almost any medium sized piers. There is no  physical stop plates, but there are electrical limit switches for open and closed. A gate centre stop is recommended.

There is a 2nd 'telescopic' arm option used for applications where the gate hinge is near the back of the pier. This option is better for some applications.

FTX is only available in 24Vdc, so is suitable for medium duty cycle applications, with the additional advantage of carrying the battery backup option.

The motors are fitted with encoders for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction. There are 230Vac and 24Vdc versions that use the ZM3E and ZLJ24 panel respectively. The controllers also have an LCD display for digitally setting every parameter. Both panels will take the 'CAME connect' option  for operation and monitoring via smartphone. The 24V kits also take a battery backup option.

Kit Contents

Double leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.



  • Two FERNIE motors with encoder
  • Two articulated arms
  • Control panel to suit AC or DC motor type
  • Receiver card for remotes
  • Antenna for remotes
  • Two remotes
  • A set of photobeams

FTX -

  • Encoder-based movement control.
  • Control board with terminal blocks, display and storage for up to 250 users.
  • Set up for operation in case of power outage.
  • Self-diagnosing safety devices.
  • User-friendly release lever for manually opening the gate.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
  • Three versions, all with encoder control, one with a short arm for C-Max 150 distance, and one with a long arm for C-Max 250 distance.
  • Smooth and silent movement with opening time of 20-30 seconds at 90°.
  • The operator can be managed from a remote location via app through the CAME GATEWAY.
  • Built-in user-friendly release tab protected by key for manually opening the gate.
  • On-board ZL65 control board, with separate terminals, and display, for easier start-ups and diagnoses.
  • Plug-in connectors for RIOCN8WS, R700, R800, RSE and AF receiver cards.

FERNI -

  • Encoder-based movement control.
  • Solid anodized aluminium cover.
  • Straight transmission arms for applications in limited space (item 001FERNI-BDX - 001FERNI-BSX).
  • Lever release system protected by key.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

STYLO -

  • For installations on posts with a minimum width of 8 cm.
  • Encoder-based movement control.
  • Reversible or irreversible gearmotor
  • They can also be installed close to a wall with the STYLO-BD accessory.
  • Set up for operation in case of power outage.
  • Custom-key release system.

FTX -

Solution for applying in private homes and apartment buildings, on small and medium-sized gate posts

Max. length of leaf (m)         Max. weight of leaf (kg)

2                                    200

1.7                                 225

1.5                                 230

1                                    250


FERNI -

Solution for applying in private homes and apartment buildings, on large-sized gate posts

Max. length of leaf (m)         Max. weight of leaf (kg)

4                                    400

3.5                                 450

3                                    500

2.5                                 600


STYLO -

Solution for fitting on posts where little space is available

Max. length of leaf (m)         Max. weight of leaf (kg)

1.8                                   400

1.2                                   450

0.8                                   500

FTX -

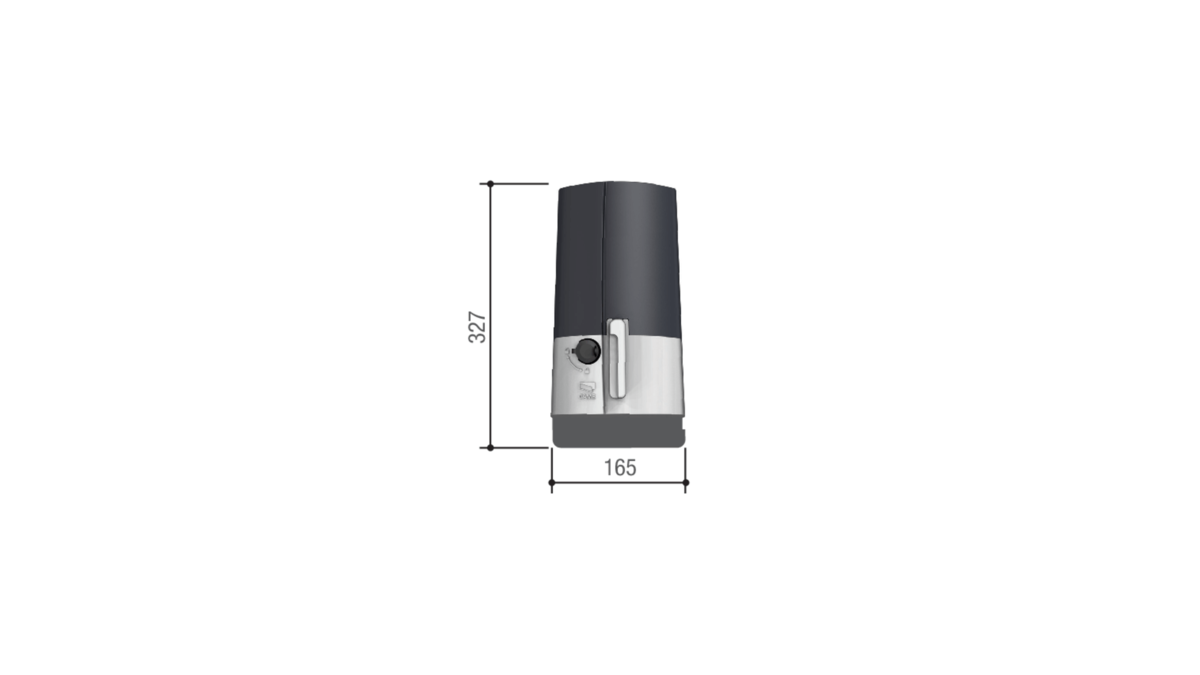

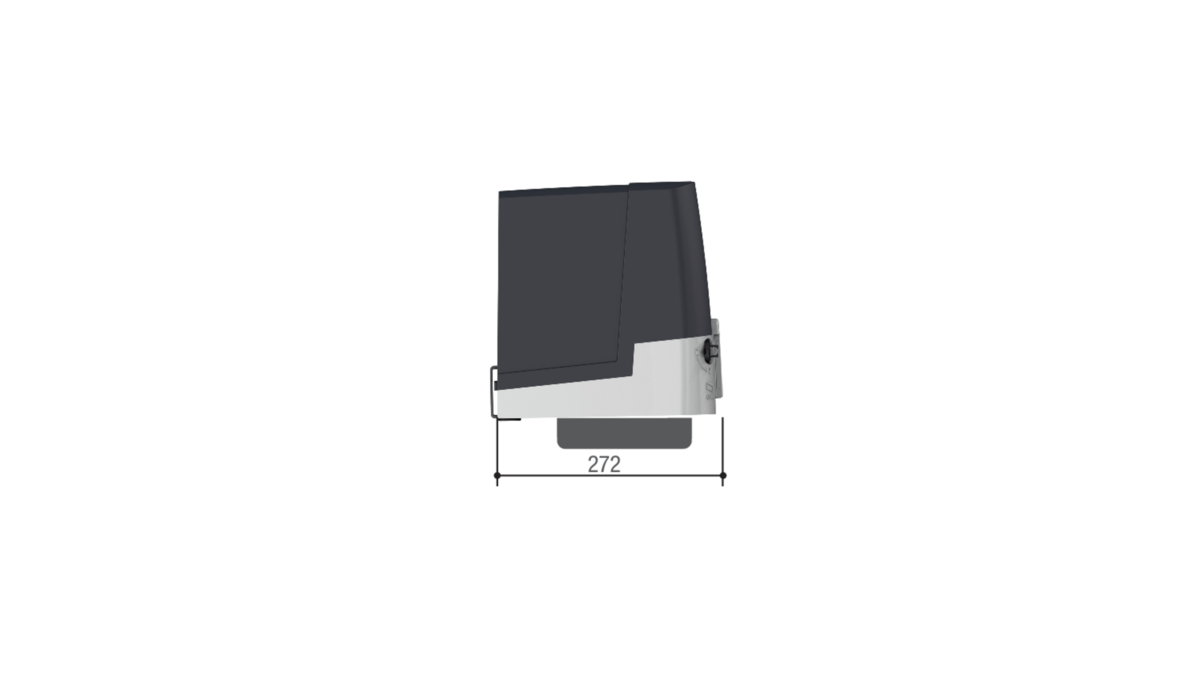

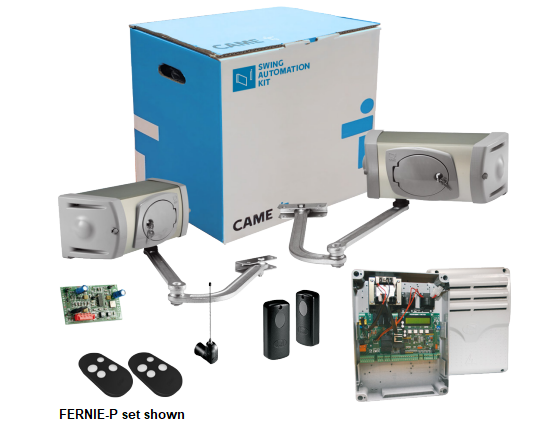

FERNI -


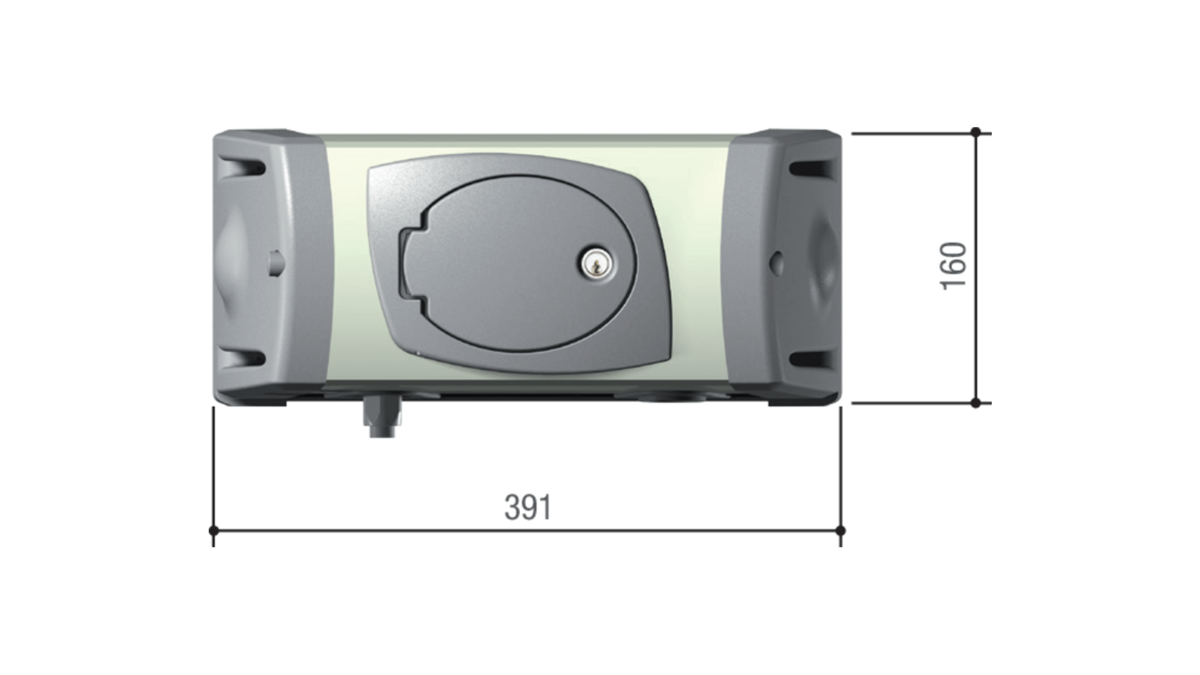

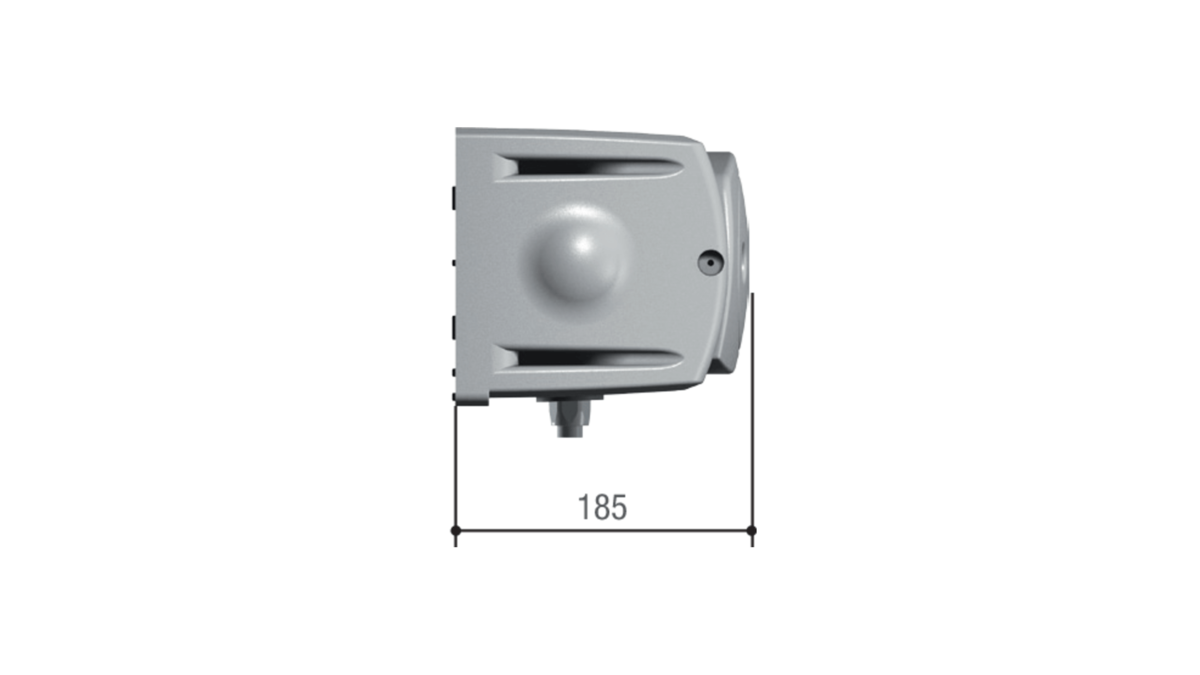

STYLO -

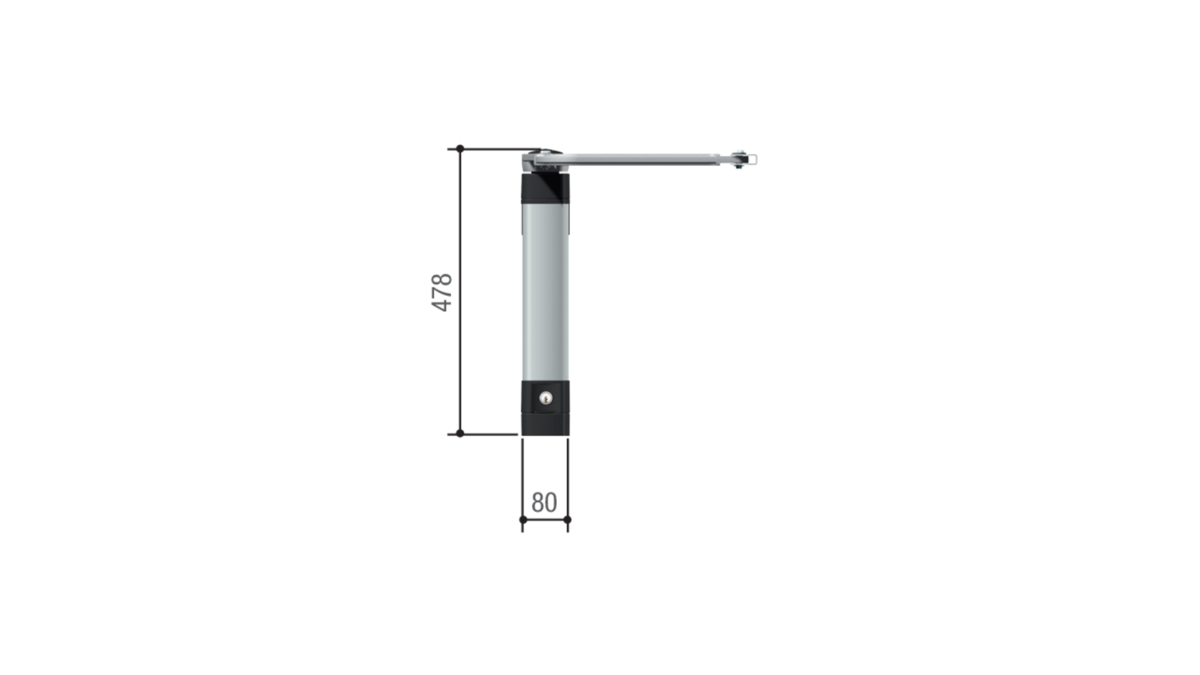

FTX -

MODELS 801MB-0110 801MB-0050 801MB-0120
Protection rating (IP) 44 44 44
Power supply (V - 50/60 Hz) 230 AC - -
Power supply to motor (V) 24 DC 24 DC 24 DC
Absorption (A) 4 Max. 4 Max. 4 Max.
Power (W) 140 140 140
Maneuvering time at 90° (s) from 20 to 30 from 20 to 30 from 20 to 30
Cycles/Hour 40 40 40
Thrust (N) 180 180 180
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55

FERNI -

MODELS FE40230 FE40230V FE4024 FE4024V
Protection rating (IP) 44 44 44 44
Power supply (V - 50/60 Hz) 230 AC 230 AC - -
Power supply to motor (V) 230 AC 50/60 Hz 230 AC 50/60 Hz 24 DC 24 DC
Absorption (A) 1,2 1,3 7 Max. 5 Max.
Power (W) 140 150 130 150
Maneuvering time at 90° (s) 34 18 ADJUSTABLE ADJUSTABLE
Duty/cycle (%) 30 30 HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE
Thrust (N) 540 320 360 360
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Motor’s heat protection (°C) 150 150 - -




STYLO -

MODELS STYLO-ME STYLO-RME
Protection rating (IP) 54 54
Power supply to motor (V) 24 DC 24 DC
Absorption (A) 5 Max. 5 Max.
Power (W) 48 48
Maneuvering time at 90° (s) ADJUSTABLE ADJUSTABLE
Duty/cycle (%) HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE
Thrust (N) 100 100
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55
