Double Ram Arm Kits


RAM ARM AUTOMATION

gate leaves up to 3M or 5M



ATS ram motor ATS ram motor

DOUBLE RAM ARM KIT OPTIONS



ATS-P      in 300m stroke length or 500mm stroke length

                       with 230Vac motors, or high duty 24Vdc motors

                       with optional limit switches



AXO-P      in 300m stroke length or 500mm stroke length

                       with 230Vac motors, or high duty 24Vdc motors



AXL-P      in 300m stroke length with 24Vdc encoder motors



Economy solution for private homes or apartment builldings



               ATS ARM KITS

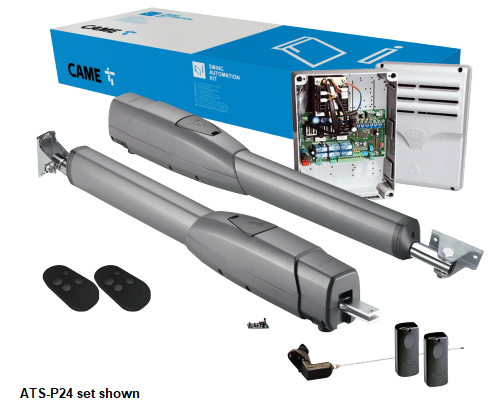

ATS double ram arm kits ATS double ram arm kits

ATS rams set the new standard for CAME arms, suitable for residential gates. The 300mm stroke length versions in ATS-P3 and ATS-P324 kits are rated for gates up to 3m per leaf. The 500mm stroke length versions in ATS-P5 and ATS-P524 kits are rated for gates up to 5m per leaf,

Hi duty sets ATS-P324 or ATS-P524 are necessary for small apartment block car parks, or gated comunities enclosing more than a dozen parking spaces.  Hi duty sets use 24V motors which have the additional advantage of carrying the battery backup option.

Some ATS's are fitted with encoders for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction. The controllers also have an LCD display for digitally setting every parameter, and take the 'CAME connect' option  for operation and monitoring via smartphone.

Kit Contents

Double leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.



  • Two ATS arms, either 300mm or 500mm stroke
  • Control panel to suit AC or DC motor type
  • Receiver card for remotes
  • Antenna for remotes
  • Two remotes
  • A set of photobeams

               AXO ARM KITS

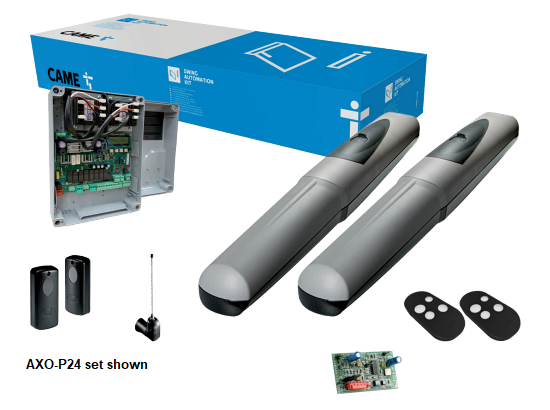

AXO double ram arm kits AXO double ram arm kits

               AXO ARM KITS

AXO rams are the strongest arms that CAME make, suitable for heavy gates, industrial gates, and boarded gates. The 300mm stroke length versions in AXO-P3 and AXO-P324 kits are rated for gates up to 3m per leaf. The 500mm stroke length versions in AXO-P5 and AXO-P524 kits are rated for gates up to 5m per leaf,

Hi duty sets AXO-P324 or AXO-P524 are necessary for apartment blocks, car parks, or gated comunities enclosing more than a dozen parking spaces.  Hi duty sets use 24V motors which have the additional advantage of carrying the battery backup option.

All AXO's are fitted with encoders for positional feedback. The motors sense obstructions, and via the advanced control panel, reverses the motor direction. The controllers also have an LCD display for digitally setting every parameter, and take the 'CAME connect' option  for operation and monitoring via smartphone.

Kit Contents

Double leaf sets have a standard set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.



  • Two AXO arms, either 300mm or 500mm stroke
  • Control panel to suit AC or DC motor type
  • Receiver card for remotes
  • Antenna for remotes
  • Two remotes
  • A set of photobeams
AXO ram arm AXO ram arm

               AXO ARM KITS

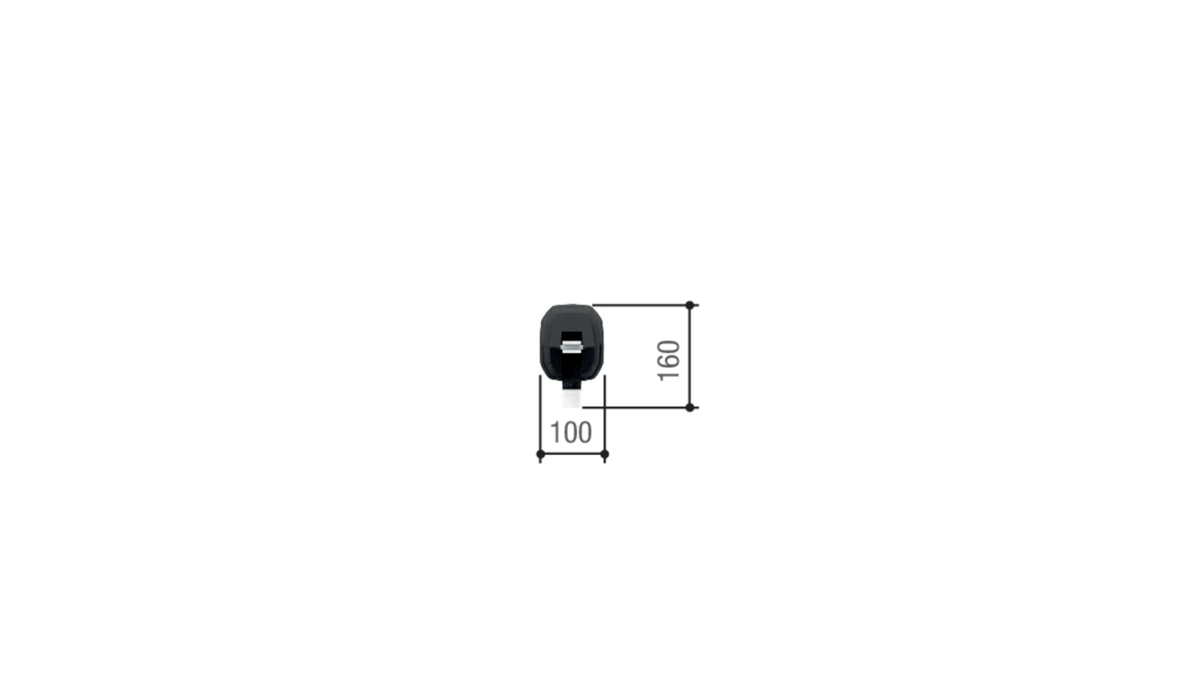

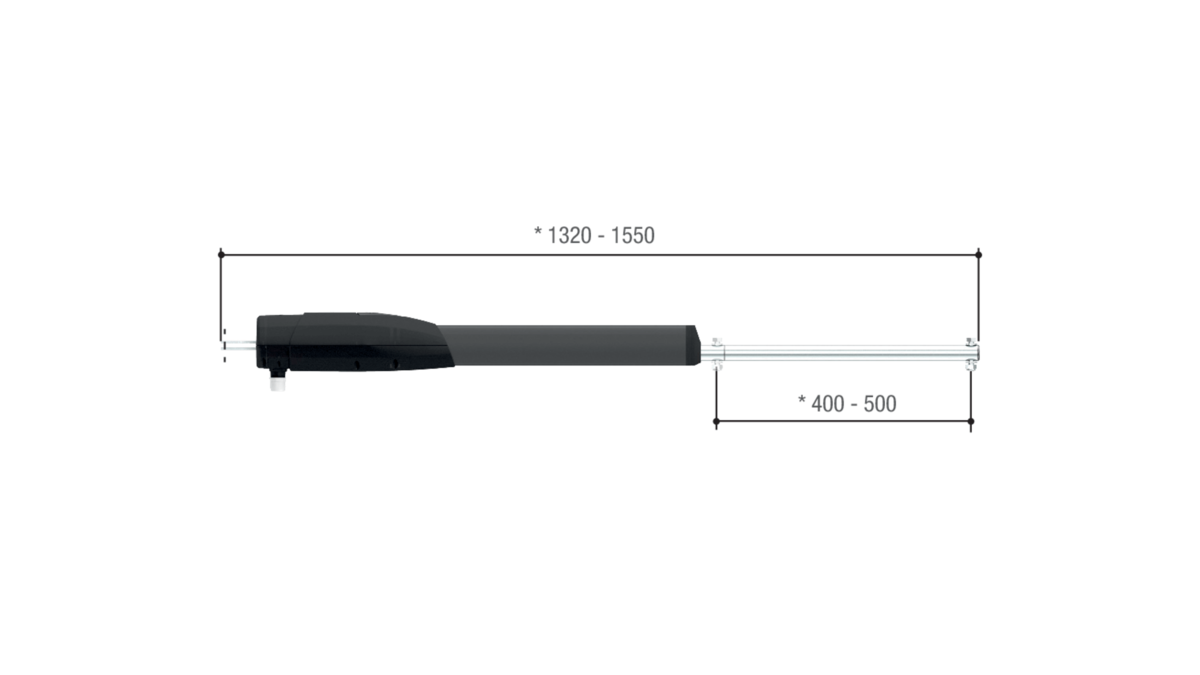

ATS -

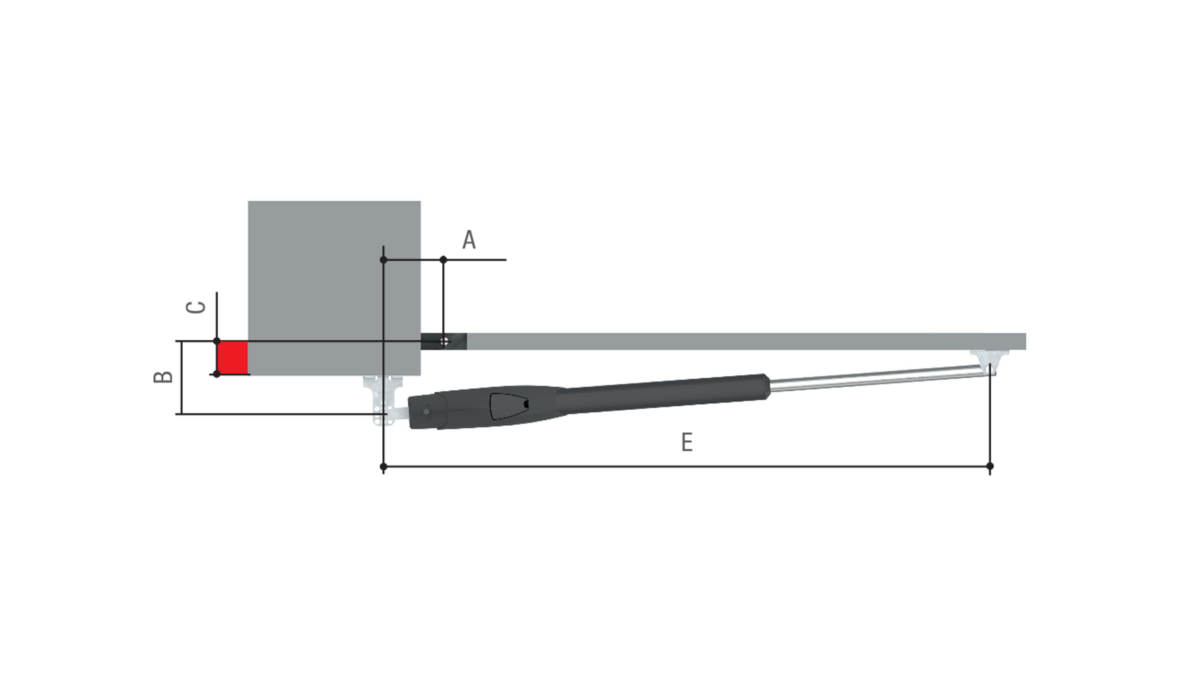

  • Designed for applications with C Max. up to 200 mm.
  • Sturdy and durable with die-cast aluminium supporting structure.
  • Reducer with bevel gear for greater fluidity of movement.
  • Release system, with the possibility of remote control.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

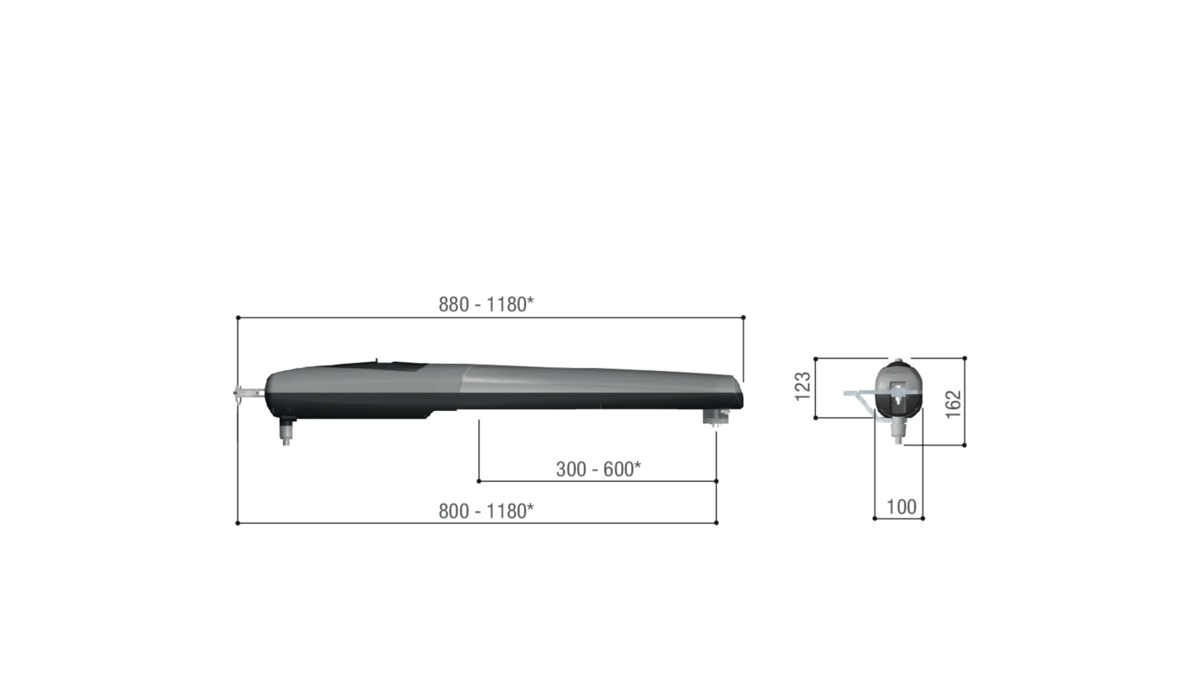

AXO -

  • Motor and encoder management with three-wire cable in 24 V DC versions.
  • Supporting structure in die-cast aluminium.
  • Set up for operation in case of power outage in the 24 V DC versions.
  • Integrated, adjustable mechanical limit switches.
  • Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

ATS 801MP-0050/0090 3m Version -

Solution for applying in private homes and apartment buildings, on posts with C Max. up to 200 mm

Max. length of leaf (m)         Max. weight of leaf (kg)

3                                   400

2.5                                 600

2                                    800


ATS 801MP-0060/0100 5m Version -

Solution for applying in private homes and apartment buildings, on posts with C Max. up to 200 mm

Max. length of leaf (m)         Max. weight of leaf (kg)

5                                   400

4                                   500

3                                   600

2.5                                 800

2                                   1000


AXO AXO302304/AX312304/AXO3024 3m Version -

Solution for applying in private homes and apartment buildings

Max. length of leaf (m)         Max. weight of leaf (kg)

3                                   500

2.5                                600

2                                   800


AXO AXO402306/AXO412306 4m Version -

Solution for applying in private homes and apartment buildings

Max. length of leaf (m)         Max. weight of leaf (kg)

4                                   300

3                                   500

2.5                                600

2                                   800


AXO AXO5024 5m Version -

Solution for applying in private homes and apartment buildings

Max. length of leaf (m)         Max. weight of leaf (kg)

5                                   400

4                                   500

3                                   700

2.5                                800

2                                   1000


AXO AXO71230 7m Version -

Solution for applying in private homes and apartment buildings

Max. length of leaf (m)         Max. weight of leaf (kg)

7                                   300

6                                   350

5                                   400

4                                   500

3                                   700

ATS -

AXO -

ATS -

MODELS 801MP-0050 801MP-0060 801MP-0090 801MP-0100 801MP-0070 801MP-0080 801MP-0110
Protection rating (IP) 54 54 54 54 54 54 54
Power supply to motor (V) 230 AC 230 AC 230 AC 230 AC 24 DC 24 DC 24 DC
Absorption (A) 1 1 1 1 8 MAX 8 MAX 8 MAX
Power (W) 250 250 250 250 80 80 80
Maneuvering time at 90° (s) 15 20 15 20 15 ÷ 30 15 ÷ 30 15 ÷ 30
Cycles/Hour 20 20 20 20 CONTINUOUS SERVICE CONTINUOUS SERVICE CONTINUOUS SERVICE
Thrust (N) 400 ÷ 3000 400 ÷ 3000 400 ÷ 3000 400 ÷ 3000 400 ÷ 3000 400 ÷ 3000 400 ÷ 3000
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Motor’s heat protection (°C) 150 150 150 150 - - -



AXO -

MODELS AX302304 AX312304 AX402306 AX412306 AX71230 AX3024 AX5024
Protection rating (IP) 44 44 44 44 44 44 44
Power supply (V - 50/60 Hz) 230 AC 230 AC 230 AC 230 AC 230 AC - -
Power supply to motor (V) 230 AC 50/60 Hz 230 AC 50/60 Hz 230 AC 50/60 Hz 230 AC 50/60 Hz 230 AC 50/60 Hz 24 DC 24 DC
Absorption (A) 1,5 1,5 1,5 1,5 1,5 10 Max. 10 Max.
Power (W) 175 175 175 175 175 120 120
Maneuvering time at 90° (s) 20 20 28 28 40 ADJUSTABLE ADJUSTABLE
Duty/cycle (%) 50 50 30 30 30 HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE
Thrust (N) 500 ÷ 4500 500 ÷ 4500 500 ÷ 4500 500 ÷ 4500 500 ÷ 4500 500 ÷ 4500 500 ÷ 4500
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Motor’s heat protection (°C) 150 150 150 150 150 - -

                 AXL budget arm kits

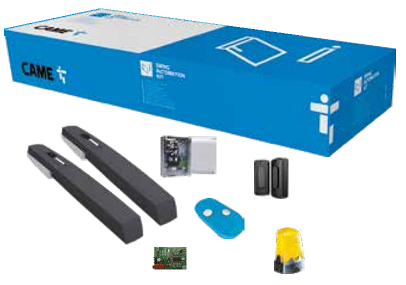

AXL double ram arm kits AXL double ram arm kits
  • Two AXL20 arms,  300mm stroke, 2m gate leaves
  • ZL60 control panel with simple GUI
  • Receiver card for remotes
  • One remote
  • A set of photobeams
  • Flashing warning light

Kit Contents

This is a budget ram set with reduced set of components. Additional control devices may be added later. Additional safety devices will probably be required to pass the mandatory force test.
