STRABUC 918 Hydraulic Bollard

STRABUC 900 series retractable hydraulic bollards.

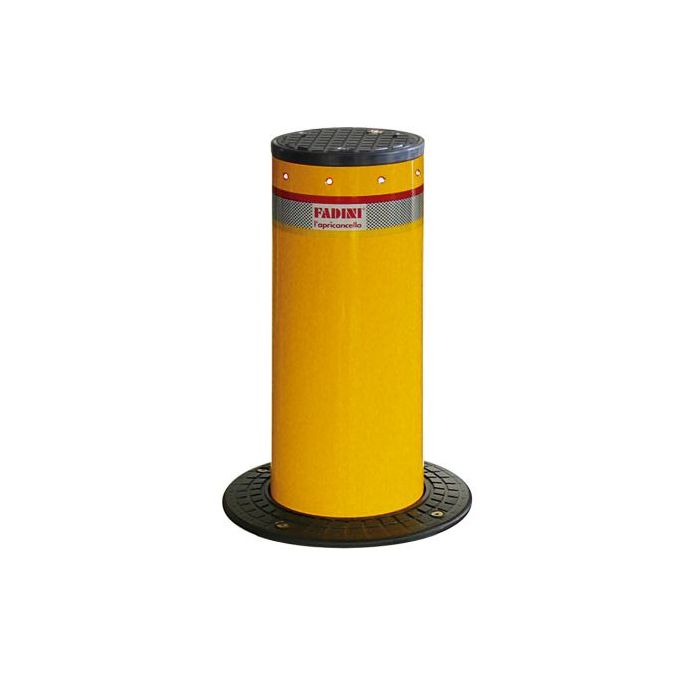

Model 918   -   275mm dia, 700mm rise height, 4mm wall, with LEDs. RAL1028 melon yellow

Model 930   -   275mm dia, 700mm rise height, 12mm wall, with LEDs. Ral7016 dark grey

Fully retractable, belowground, oil-hydraulic steel traffic control post intended to prevent unauthorised vehicular access. It is an oil-hydraulic operator with a built-in hydraulic main unit. The Elpro S40 electronic programmer is installed externally, in a protected place. The traffic control post comes with a series of accessories that guarantee the necessary safety and the required operations, in order to make the operator suitable for installation in all public and
private settings.

STRABUC 918: bollard with retractable post of steel, 4 mm thickness. Stainless steel option available. For both versions an optional electro/solenoid-valve is possible for automatic lowering in case of power failure. Crash rated at 280kJ.

STRABUC 930 HEAVY ARMOURED: bollard with retractable post of steel, 12 mm thickness. On request the unit can be fitted with an electro/solenoid-valve for automatic lowering in case of power failure, and an armoured lock barrel, removable only by a custom-made key, to provide burglar-proof extra security to the post. Crash rated at 410kJ.

The motor-pump is located in the centre of the casing. LED lights make the post visible. 275mm post diameter. Strabuc 918 available also with post in stainless steel inox AISI 304 options. Triangular profile spanner to override for manual descent of the post.

Quality of the materials - the entire structure is treated with electrolytic galvanisation, while the foundation casing is hot dip galvanised. Cable junction box and connector are IP66. Hydraulic unit working temperature -20 °C + 80 °C.

Versatile - a large range of commanding accessories (tags, key-pads, etc.) and security devices (loop detector, traffic lights, beeper signalling the post movements, 24 V DC solenoid valve
for the post to lower in case power supply is disconnected, obstacle detector to prevent the post from rising when an obstacle is on it, anti-theft cover plate, etc.) to ensure the most efficient and precise control over the systems. The ELPRO S40 electronic controller can manage up to 4 bollards simultaneously.
