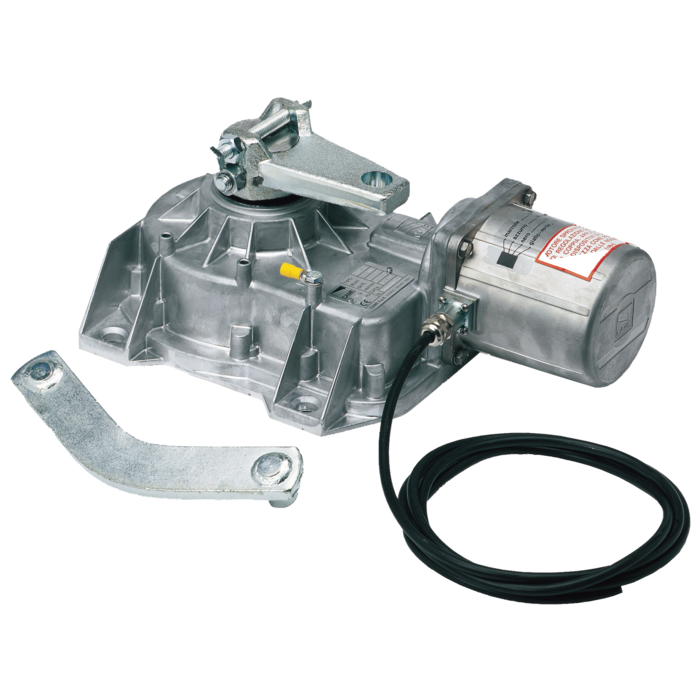

FROG-AE 230V underground encoder motor Our Price £271.44 £226.20 Regular Price £452.40
FROG-AE Irreversible underground 230 V gearmotor with encoder, adjustable leaf-closing for swing gates with up to 3.5 m leaves that weighs up to 400 kg.
Motor Features:
Encoder
Motor Voltage:
230v
Max Length:
3.5m
Max Weight:
400Kg
CAME Connect
European Standards
The invisible solution to power your gate
Protection rating against weathering agents IP67.
Foundation box in steel with anticorrosive treatment, or in AISI 304 stainless steel.
Automatic re-hooking of the release system after the gate manual maneuver.
Integrated, adjustable mechanical limit switches.
Opening up to 180° (with FL-180 accessory).
Set up for operation in case of power outage in the 24 V DC versions.
Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.
Concealed solution for applying in private homes or apartment buildings
Max. length of leaf (m) Max. weight of leaf (kg)
3.5m 400kg
2.5m 600kg
2m 800kg
MODELS FROG-AE FROG-A FROG-AV FROG-A24E
Protection rating (IP) 67 67 67 67
Power supply (V - 50/60 Hz) 230 AC 230 AC 230 AC -
Power supply to motor (V) 230 AC 230 AC 230 AC 24 DC
Absorption (A) 1,9 1,9 2,5 15 Max.
Power (W) 460 460 300 180
Maneuvering time at 90° (s) 18 18 9 ADJUSTABLE
Duty/cycle (%) 30 30 30 HEAVY-DUTY SERVICE
Cycles/Hour 11 MAX 11 MAX - -
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Motor’s heat protection (°C) 150 150 150 -
